We have an excellent technical team, our products in quality and quantity will make you satisfied, welcome to buy
 |
22314
TMY
| Quantity: | |
|---|---|
Part Number | 22314 CC CAW33 |
Type | Spherical Roller Bearing/Excavator |
Brand | TMY |
Precision Rating | P0,P6,P5,P4 |
Hardness | 58-62HRC |
Seals Type | Open |
Size | 70*150*51mm |
Material | Chrome steel GCr15 |
| Cage | CA CC E MB Cage |
Package Detail | Carton, wooden Case, or as Required |

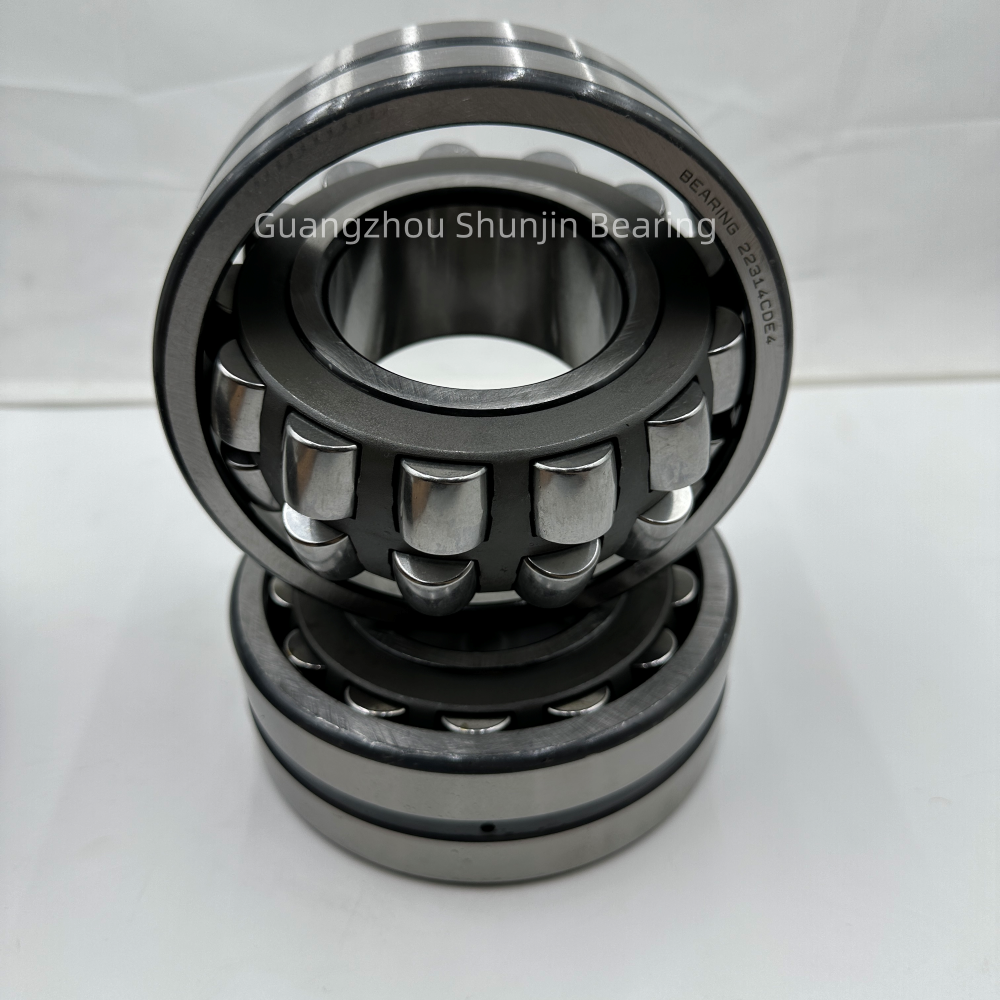

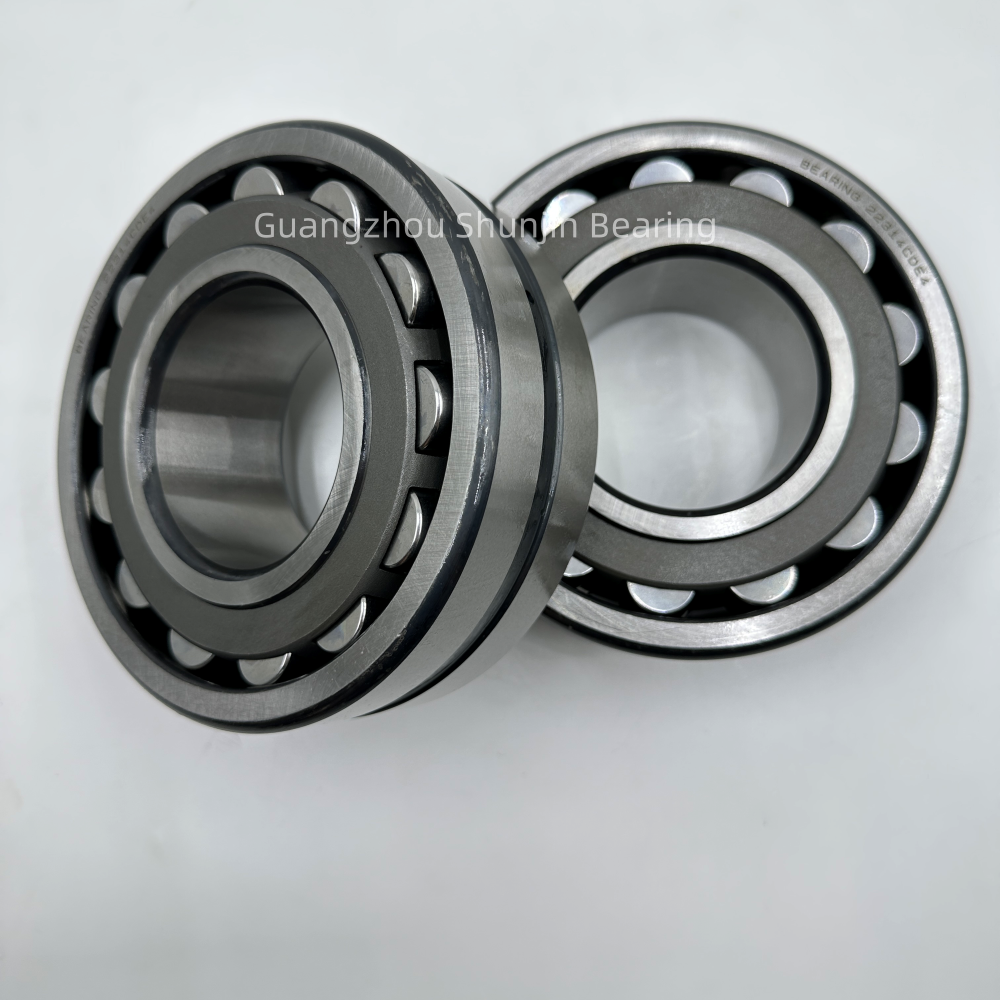

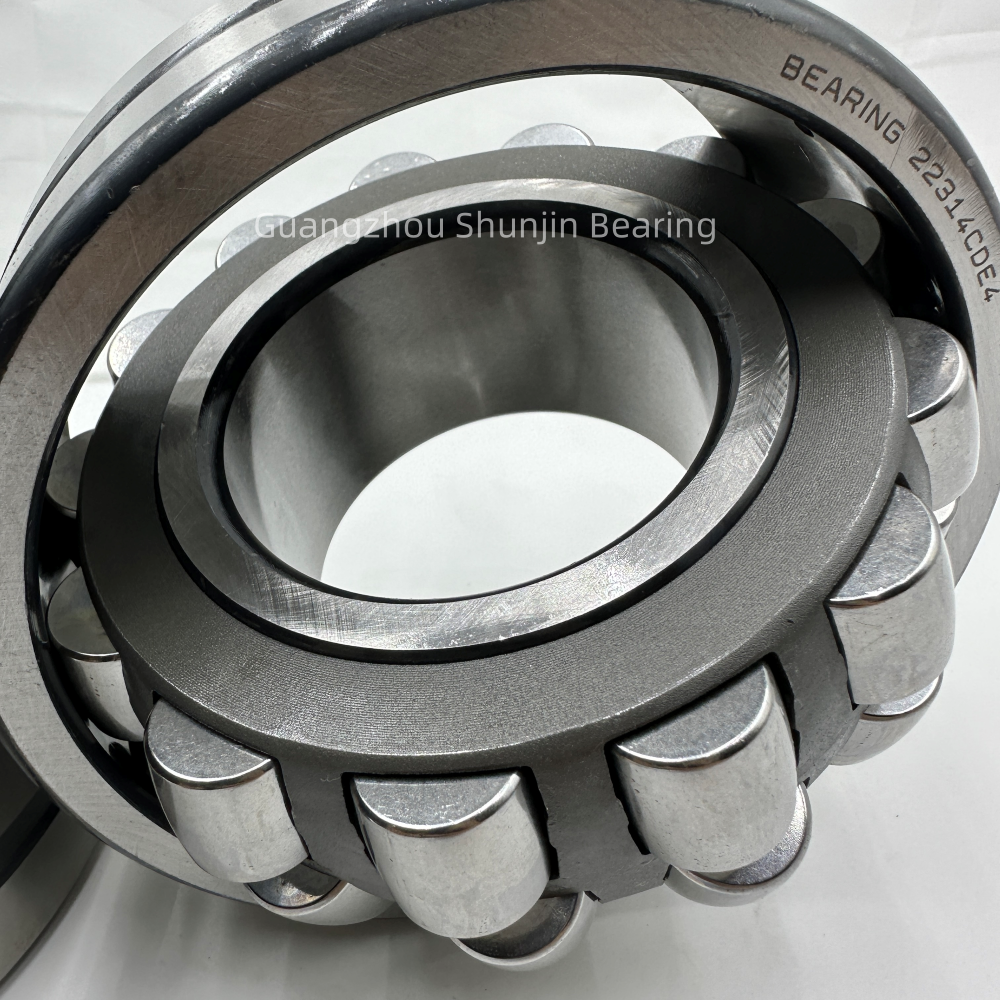

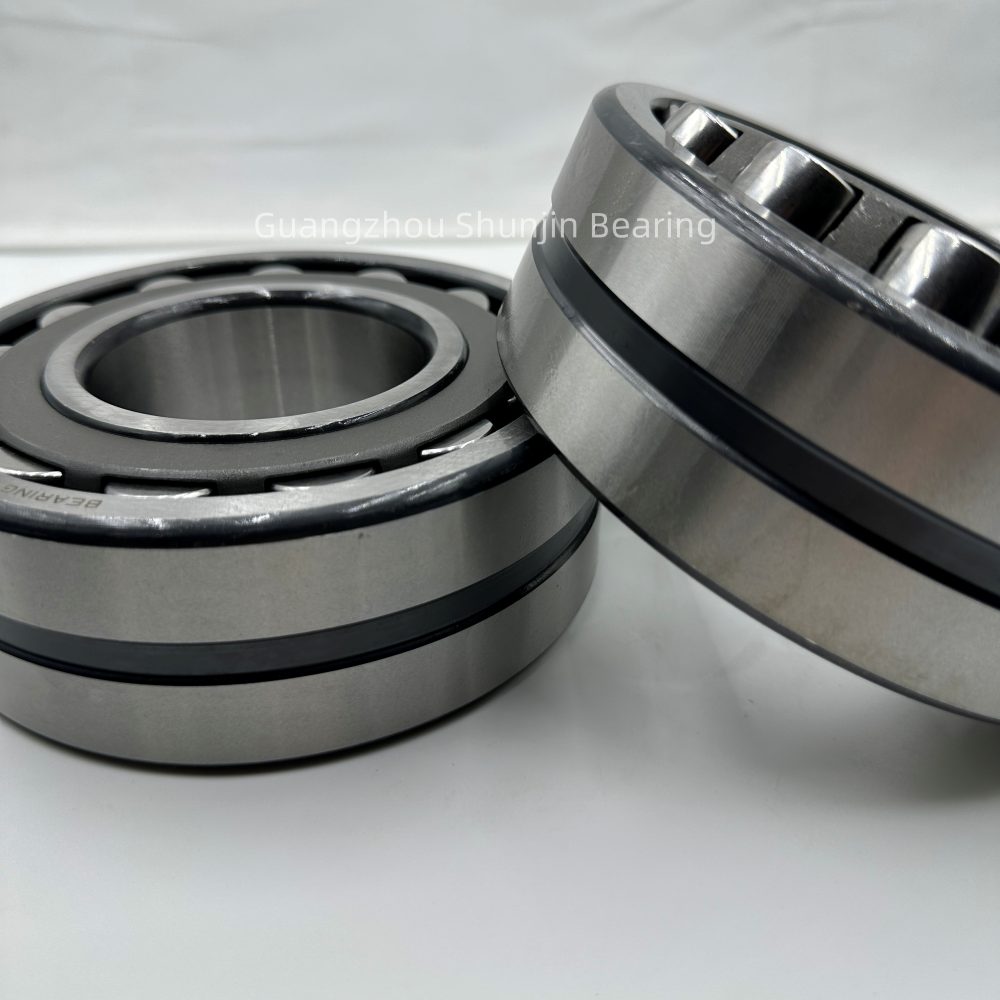

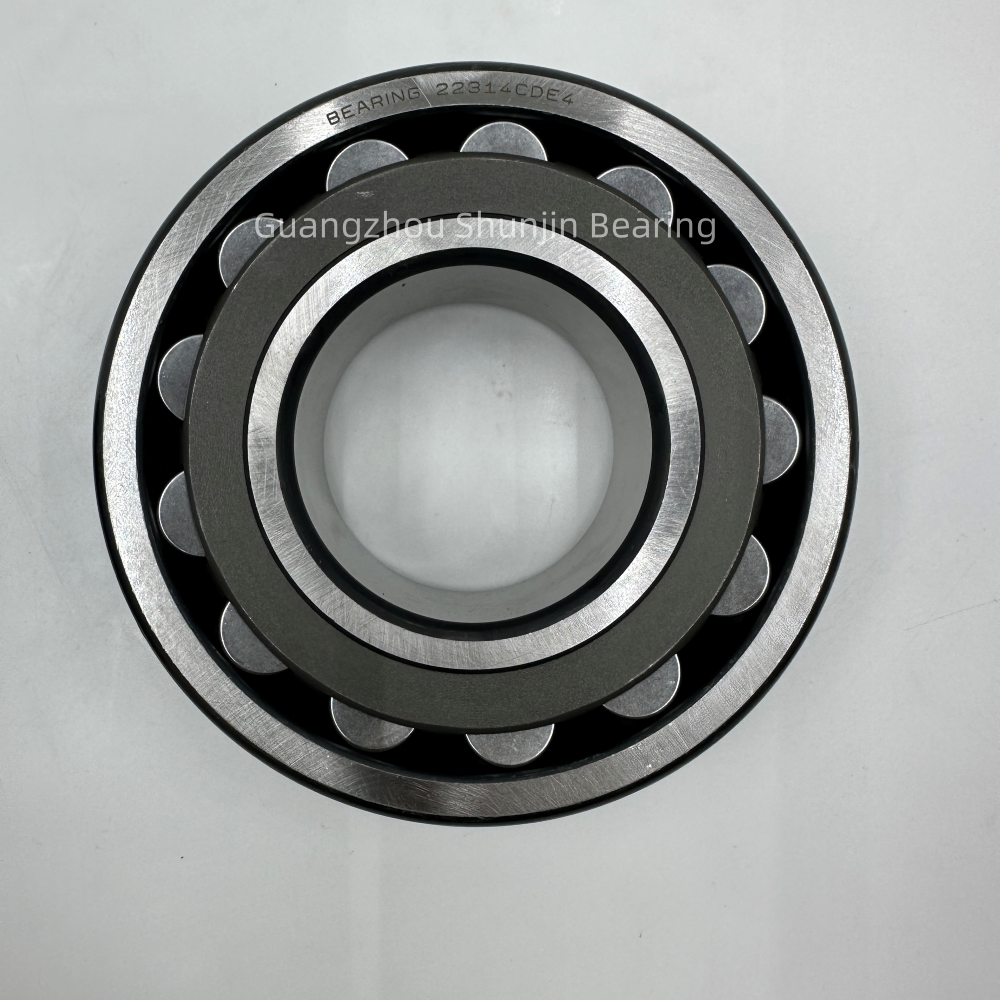

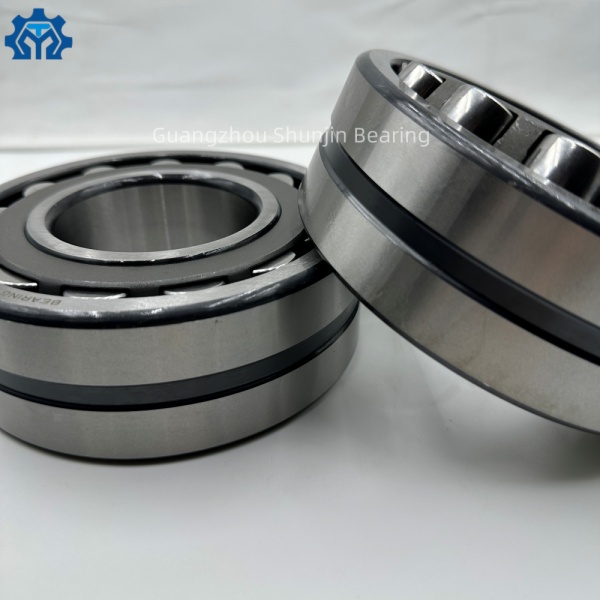

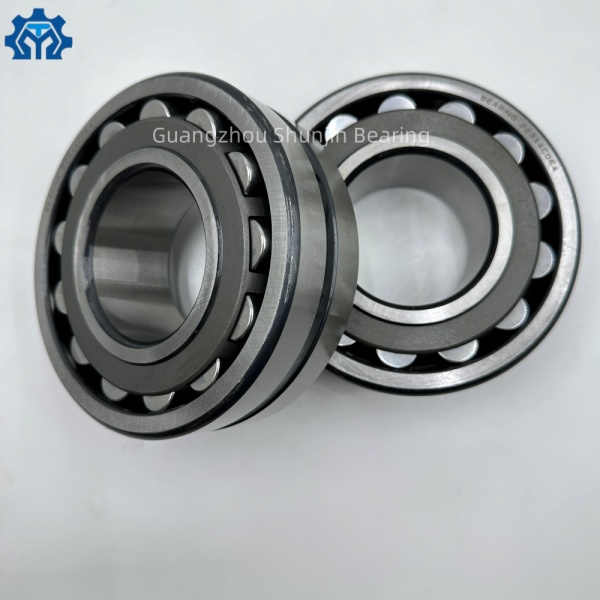

Product Photo:
Product features:

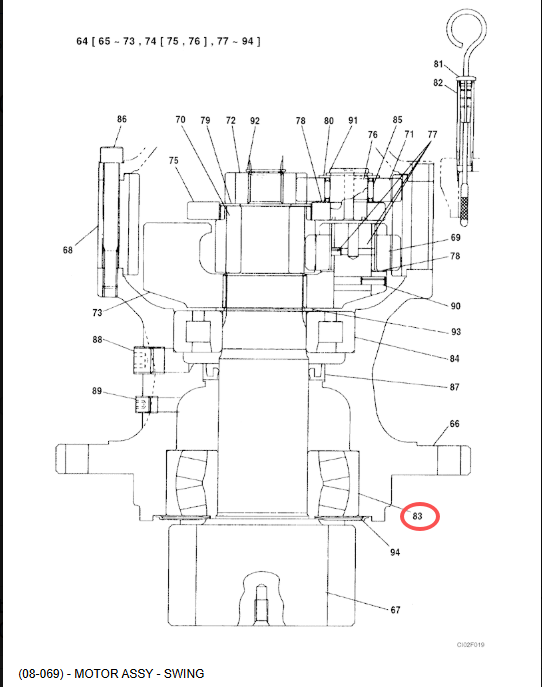

1. Special bearing for excavator slewing gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' Spherical roller bearing, the service life is increased by 50%
Recommend Products:
This is partial of our Excavator Bearings Stock List.
If you need other models, please feel free to contact me.
| Model | Bore Diameter (mm) | Outer Diameter (mm) | Width (mm) | Weight (kg) | Model | Bore Diameter (mm) | Outer Diameter (mm) | Width (mm) | Weight (kg) |
| 22205 | 25 | 52 | 18 | 0.22 | 23120 | 100 | 165 | 52 | 4.8 |
| 22206 | 30 | 62 | 20 | 0.35 | 23124 | 120 | 200 | 62 | 7.8 |
| 22207 | 35 | 72 | 23 | 0.5 | 23126 | 130 | 210 | 64 | 8.5 |
| 22208 | 40 | 80 | 23 | 0.7 | 23130 | 150 | 250 | 80 | 13 |
| 22209 | 45 | 85 | 23 | 0.8 | 23136 | 180 | 300 | 96 | 21 |
| 22210 | 50 | 90 | 23 | 0.85 | 23140 | 200 | 340 | 112 | 33 |
| 22211 | 55 | 100 | 25 | 1 | 23144 | 220 | 370 | 120 | 41 |
| 22212 | 60 | 110 | 28 | 1.3 | 23148 | 240 | 400 | 128 | 50 |
| 22213 | 65 | 120 | 31 | 1.65 | 23152 | 260 | 440 | 144 | 68 |
| 22215 | 75 | 130 | 31 | 1.9 | 23156 | 280 | 460 | 146 | 74 |
| 22216 | 80 | 140 | 33 | 2.2 | 23160 | 300 | 500 | 160 | 92 |
| 22218 | 90 | 160 | 40 | 3.6 | 24024 | 120 | 180 | 60 | 5.7 |
| 22308 | 40 | 90 | 33 | 1.05 | 24026 | 130 | 200 | 69 | 7.3 |
| 22309 | 45 | 100 | 36 | 1.5 | 24030 | 150 | 225 | 75 | 9.8 |
| 22310 | 50 | 110 | 40 | 1.9 | 24036 | 180 | 280 | 100 | 18.5 |
| 22311 | 55 | 120 | 43 | 2.3 | 24040 | 200 | 310 | 109 | 26 |
| 22312 | 60 | 130 | 46 | 2.8 | 24044 | 220 | 340 | 118 | 33 |
| 22315 | 75 | 160 | 55 | 4.9 | 24048 | 240 | 360 | 118 | 37 |
| 22318 | 90 | 190 | 64 | 7.6 | 24052 | 260 | 400 | 140 | 53 |
| 23022 | 110 | 170 | 45 | 4.1 | 24056 | 280 | 420 | 140 | 60 |
| 23024 | 120 | 180 | 46 | 4.6 | 24060 | 300 | 460 | 160 | 75 |
| 23026 | 130 | 200 | 52 | 6 | 24120 | 100 | 165 | 65 | 5.9 |
| 23030 | 150 | 225 | 56 | 7.8 | 24124 | 120 | 200 | 80 | 9.8 |
| 23036 | 180 | 280 | 74 | 13.5 | 24126 | 130 | 210 | 80 | 10.2 |
| 23040 | 200 | 310 | 82 | 22.5 | 24130 | 150 | 250 | 100 | 16.2 |
| 23044 | 220 | 340 | 90 | 30 | 24136 | 180 | 300 | 118 | 26.5 |
| 23048 | 240 | 360 | 92 | 35 | 24140 | 200 | 340 | 140 | 38 |
| 23052 | 260 | 400 | 104 | 48 | 24144 | 220 | 370 | 150 | 48 |
| 23056 | 280 | 420 | 106 | 55 | 24148 | 240 | 400 | 160 | 57 |
| 23060 | 300 | 460 | 118 | 72 | 24152 | 260 | 440 | 180 | 75 |
Factory:
Packaging:
Why choose us?
1. Trusted Product
2. Advanced Technology
3. Reliable Service
4. Competitive price
FAQ:
1. How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in Alibaba so that we can offer you a quote.
2. How to quickly and accurately buy products what lneeded?
A: Provide theoriginal parts number to us to check.
3. Are vou trading companv or manufacturer ?
A: We are a manufacturing and trading combo.
4. How long is your delivery time?
A: The normal delivery time of stock products after receiving payment is 2-5 days.
5. lf I don't know the part number, what shouldI do?
A: Please send us size and pictures of old products.
