TMY Excavator Travel Reduction Bearing 20Y-27-11570

20Y-27-11570 Bearings are used in the Travel Reduction of Komatsu: PC200-5,PC200-6,PC220,PC240

Part No.: 20Y-27-11570
Brand: TMY
MOQ: 1
Shipping Port; Guangzhou, Shenzhen, Qingdao…
Shipping Day: 2-6 Days

Model:
PC220
Brand:
TMY

Availability:

Quantity:



Inquire Add to Basket

Product Description

TMY Excavator Travel Reduction Bearing 20Y-27-11570

Part Number	20Y-27-11570 20Y2711570
Type	Excavator Travel Gearbox Bearing
Brand	TMY
Application	In Precision Instrument, low Noise Motor, Automobile and other Machine Industry.
Size	MM
Material	Chrome steel GCr15

Key Features/Benefits:

1. Exceptional Durability: Manufactured with high-grade materials and advanced heat treatment for superior resistance to wear, pitting, and fatigue.

2. High Load Capacity: Designed to withstand the immense radial and axial forces generated during excavator travel and operation.

3. Robust Construction: Optimized for impact resistance and handling the shock loads common in heavy excavation work.

4. Precision Engineering: Ensures reliable performance, smooth operation, and minimal vibration within the final drive assembly.

5. Extended Service Life: Reduces downtime and maintenance costs by providing long-lasting reliability in critical applications.

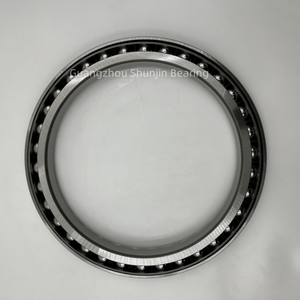

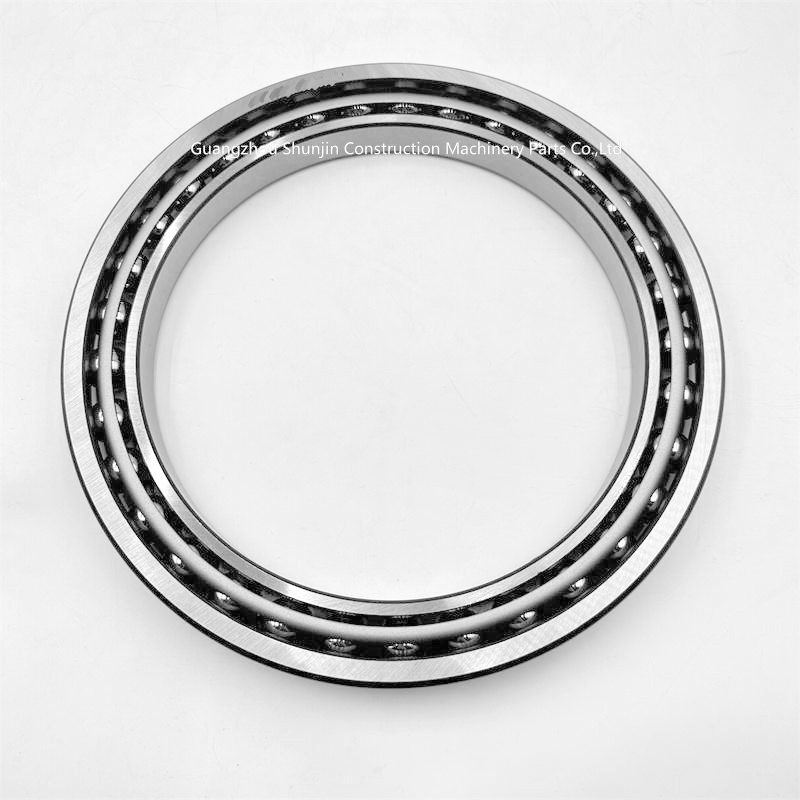

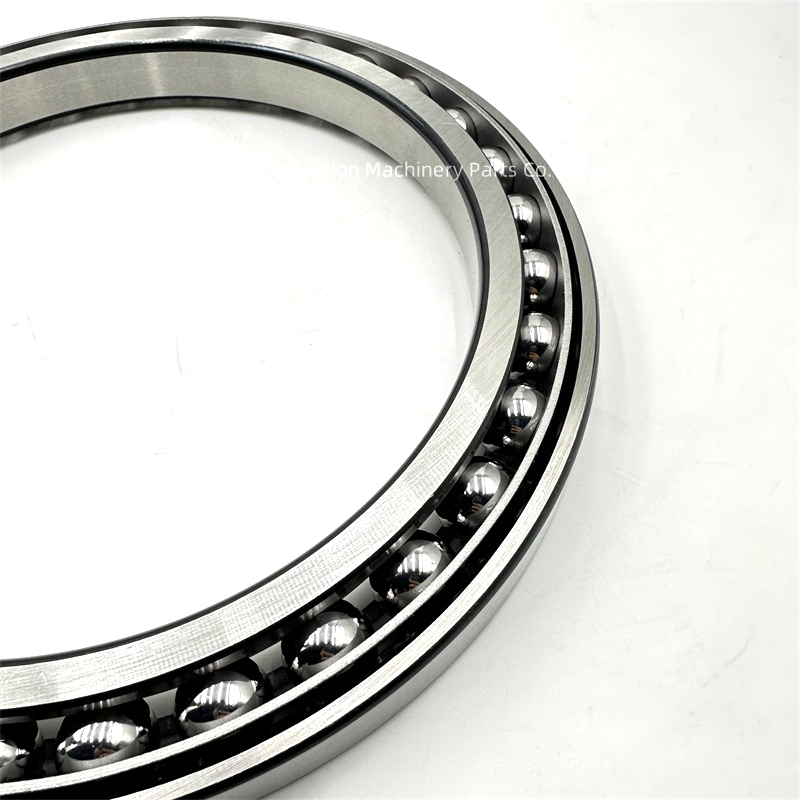

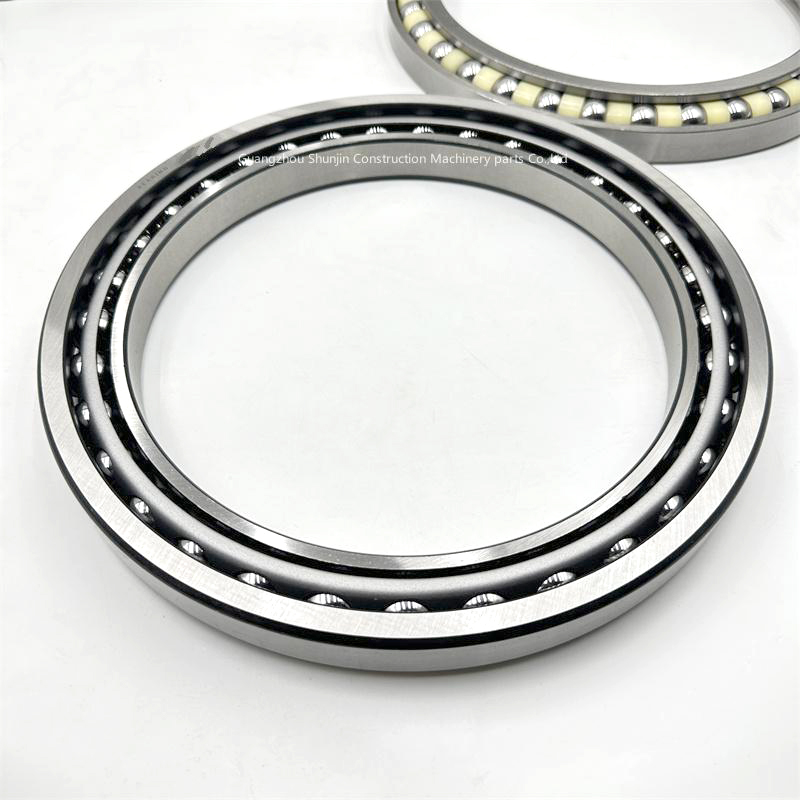

Product Photo:

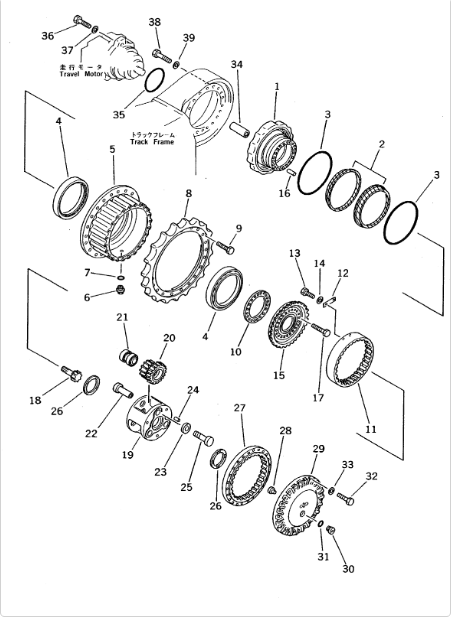

Products drawing:

20Y-27-11570

Parts on group :

Pos.	Part No.	Qty	Parts Name	Comments
G-1.	20Y-27-X1102	[2]	FINAL DRIVE GROUP KomatsuChina	-
G-1.	20Y-27-X1101	[2]	FINAL DRIVE GROUP KomatsuChina	-
	20Y-27-00015	[1]	FINAL DRIVE ASSY KomatsuChina	-
	20Y-27-00014	[1]	FINAL DRIVE ASSY KomatsuChina	-
	20Y-27-00013	[1]	FINAL DRIVE ASSY KomatsuChina	-
	20Y-27-00012	[1]	FINAL DRIVE ASSY KomatsuChina	-
	20Y-27-00011	[1]	FINAL DRIVE ASSY KomatsuChina	-
1	20Y-27-13130	[1]	SHAFT KomatsuChina	2.7 kg.
	150-27-00028	[1]	FLOATING SEAL ASSY KomatsuChina	2.4 kg.
	150-27-00027	[1]	FLOATING SEAL ASSY KomatsuChina	2.4 kg.
2	150-27-00262	[1]	SEAL RING ASSY Komatsu	2.2 kg.
3	144-873-0310	[1]	O-RING ASSY Komatsu	0.29 kg.
	150-27-00270	[1]	O-RING ASSY Komatsu	0.29 kg.
4	20Y-27-11570	[2]	BEARING KomatsuChina	5.2 kg.
5	20Y-27-13120	[1]	HUB Komatsu	101 kg.
5A.	20Y-27-13290	[1]	O-RING Komatsu	0.02 kg.
6	07044-12412	[1]	PLUG Komatsu	0.09 kg.
7	07002-02434	[1]	O-RING KomatsuChina	0.01 kg.
8	20Y-27-11581	[1]	SPROCKET KomatsuChina	36.2 kg.
9	20Y-27-11560	[20]	BOLT Komatsu	0.14 kg.
10	20Y-27-00031	[1]	SPACER KIT Komatsu	4.143 kg.
	20Y-27-00030	[1]	SPACER KIT Komatsu	4.143 kg.
11	20Y-27-13270	[1]	RETAINER Komatsu	17.9 kg.
12	20Y-27-11180	[20]	BOLT Komatsu	0.15 kg.
13	01010-51645	[4]	BOLT KomatsuChina	0.104 kg.
14	01643-31645	[4]	WA SHER Komatsu	0.072 kg.
15	20Y-27-13190	[1]	GEAR Komatsu	61 kg.
16	20Y-27-13230	[1]	CARRIER Komatsu	22.75 kg.
17	205-26-71541	[1]	WA SHER,THRUST KomatsuChina	0.08 kg.
18	20Y-27-13210	[1]	GEAR Komatsu	3.023 kg.
19	20Y-27-13220	[3]	GEAR KomatsuChina	4.52 kg.
20	20Y-27-13260	[3]	BEARING KomatsuChina	1.65 kg.
21	20Y-27-13240	[3]	PIN Komatsu	1 kg.
22	20Y-27-11240	[3]	HOLDER KomatsuChina	-
23	01011-51200	[3]	BOLT Komatsu	0.104 kg.
