PC300-8MO
TMY
| Availability: | |
|---|---|
| Quantity: | |
Part Number | 207-27-72220 |
Type | Excavator Final Drive Bearing |
Brand | TMY |
Application | In Precision Instrument, low Noise Motor, Automobile and other Machine Industry. |
Size | MM |
Material | Chrome steel GCr15 |
Key Features/Benefits:
1. Exceptional Durability: Manufactured with high-grade materials and advanced heat treatment for superior resistance to wear, pitting, and fatigue.
2. High Load Capacity: Designed to withstand the immense radial and axial forces generated during excavator travel and operation.
3. Robust Construction: Optimized for impact resistance and handling the shock loads common in heavy excavation work.
4. Precision Engineering: Ensures reliable performance, smooth operation, and minimal vibration within the final drive assembly.
5. Extended Service Life: Reduces downtime and maintenance costs by providing long-lasting reliability in critical applications.
Product Photo:



Recommend Products:
This is partial of our Excavator Bearings Stock List.
If you need other models, please feel free to contact me.

561904P6X | BA110-1A | SF6015PX1 | AC5033 |
36990/20 | BA115-1 | SF4454PX1 | AC5836 |
150BA182 | BA130-1A | SF6037-1 | AC463240 |
180BA235 | BA205-1 | SF4815VPX1 | AC4615 |
T2ED045-1 | BA220-6 | SF4831PX1 | AC4631 |
R196Z-4 | BA222-1 | SF4852PX1 | AC3928 |
AC563946AB | BA230-7A | SF4826PX1 | AC4833 |
215BA300S1 | BA246-2 | SF2812PX1 | AC563946AB |
310BA300 | BA260-3A | SF3227PX1 | CR4411PX1 |
BD165-6SA | BA260-4A | SF4007PX1 | 245BA35S1 |
BN220-1 | BA280-2SA | SF4860PX1 | 180BA-2256 |
DB130-16 | BA290-3A | SF2912PX1 | 140BA180 |
F-846030 | BA196-3A | SF4444PX1 | 120BA16 |

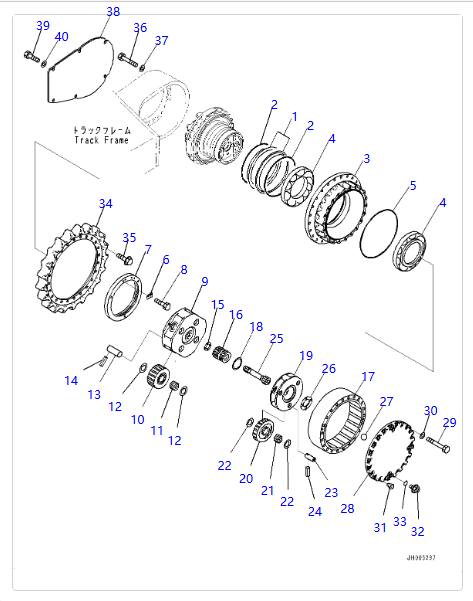

Drawing:

| Pos | Part No. | Qty | parts name | comments |
| 207-27-00590 | 1 | Final Drive Assembly | - | |
| 207-27-00510 | 1 | Floating Seal Assembly | - | |
| 3 | 207-27-72290 | 1 | Hub | - |
| 4 | 207-27-72220 | 2 | Bearing | - |
| 5 | 207-27-52350 | 1 | O-ring | 0.02 kg |
| 6 | 207-27-72260 | 1 | Lock | - |
| 7 | 207-27-72250 | 1 | Nut, Lock | - |
| 8 | 01010-81020 | 2 | Bolt | 0.161 kg |
| 9 | 207-27-72170 | 1 | Carrier | - |
| 10 | 207-27-72140 | 4 | Gear | 0.000 kg |
| 11 | 207-27-72210 | 4 | Bearing | - |
| 12 | 21M-27-11260 | 8 | Washer, Thrust | 0.24 kg |
| 13 | 208-27-71250 | 4 | Pin | 2.16 kg |
| 14 | 207-27-21290 | 4 | Pin | 0.03 kg |
| 15 | 207-27-13310 | 1 | Washer, Thrust | 0.08 kg |
| 16 | 207-27-72130 | 1 | Gear | 0.000 kg |
| 17 | 207-27-72150 | 1 | Gear | 0.000 kg |
| 18 | 207-27-72240 | 1 | Washer, Thrust | - |
| 19 | 207-27-72160 | 1 | Carrier | - |
| 20 | 207-27-72120 | 3 | Gear | 0.000 kg |
| 21 | 220-26-21320 | 3 | Bearing | 1.1 kg |
| 22 | 206-26-71520 | 6 | Washer, Thrust | 0.1 kg |
| 23 | 207-27-72230 | 3 | Pin | - |
| 24 | 207-27-21280 | 3 | Pin | 0.01 kg |
| 25 | 207-27-72110 | 1 | Shaft | 0.000 kg |
| 26 | 207-27-11250 | 1 | Spacer | 0.044 kg |
| 27 | 04260-01905 | 1 | Ball | 0.029 kg |
| 28 | 207-27-72180 | 1 | Cover | - |
| 29 | 01011-61890 | 22 | Bolt | - |
| 30 | 01643-31845 | 22 | Washer | 0.02 kg |
| 31 | 07049-01215 | 2 | Plug | 0.001 kg |
| 32 | 07044-12412 | 3 | Plug | 0.09 kg |
| 33 | 07002-02434 | 3 | O-ring | 0.01 kg |
| 34 | 207-27-72270 | 1 | Sprocket | 0.000 kg |
| 35 | 207-27-51311 | 24 | Bolt | 0.222 kg |
